Probably the most useful little wiper/washer control relay ever.
This unit allows the use of any standard or custom-made wiper motor unit with any wiper switch or other switching method.

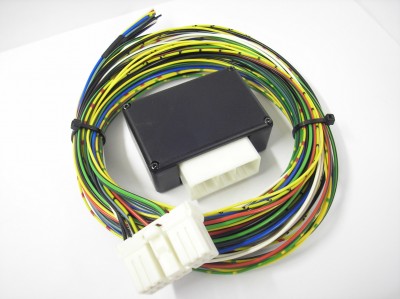

The BodyLogic Motorsport wash/wiper controller also allows the control of washer motors and park position.
There is no need to understand self-park circuits, just ask, buy and fit.
Weight Of Unit (excl wiring)-
IP54 (Damp/Splash Proof)
Speed 1 up to 20A 12V or 24V.
Speed 2 up to 20A 12V or 24V.
Self Park- Using original motor position switch or custom positioned switch or sensor.
Allows for the use of any wiper motor or custom made motor system.
Fixed or variable intermittent, dependant on switch arrangement used (variable optional extra at time of ordering).
Washer motor control up to 20A 12V or 24V (Power Wash).
Auto wipe and 3 wipe post wash, when wash is triggered.
Separate fusing of wiper and wash systems
Ignition on input function (Allows unit to work) so main power supply for wash and wipe can be connected directly to the battery positive circuit reducing load on the ignition switch.
Negative triggering of unit function for safety, no live to switches, enabling simplicity of wiring allowing multiple switches (i.e. Control of wash/wipe by navigator)
Controller function can be customised for bespoke applications, please contact us with your requirements.
BodyLogic Wiper Controller with Multifunction Switch
The Bodylogic Wiper Controller is shown in the diagram above incorporating standard Land Rover wiper motor and multifunction switch units. Demonstrating the units flexibility, enabling any wiper motor and switch combination.
BodyLogic Wiper Controller with Intermitant Delay and 2 Speed Switching
The BodyLogic Wiper controller is shown above in a more complex system with washer motor control, 2 speed switching using single switches and intermitant time delay functions (variable intermitance optional extra at time of ordering).
Standard Wiper Wiring
Why choose a BodyLogic control unit over the standard wiring method shown above?
Here are a few of the many reasons-
Ease of fitting
Low current switching (modern switch stalks)
Use any wiper motor or switch selection
Variable intermitance (optional extra at time of ordering)
Wash motor control
The kit includes-
Connector with 2 Metre wire tails for direct connection to the unit
Switch wiring diagram layouts
(No switches or switch connectors are included in the kit)
